About this item

Model Number: MD35-CK
DIY Supplies: Metalworking
Brand Name: AmScope

AmScope USB Still & Live Video Microscope Imager Digital Camera + Calibration Kit

The MD35 is an entry-level ultra-compact 640×480 pixel USB digital microscope camera ideally suited for use as an eyepiece camera. By itself it will fit 23mm ocular or photo ports but it can be adapted to fit 30mm or 30.5mm ports using the included sleeves. Using the USB interface for both connectivity and power only a single cable is needed.

With software available for Windows Mac and Linux this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux there is a lite version of the software which can capture video and still images and includes limited processing features. The included calibration slide allows you to take accurate measurements in the software by creating baseline measurements at multiple magnifications.

Camera Specifications:

Sensor: Aptina (color)
Sensor Type: CMOS
Sensor Size: 3.58×2.69mm (1/4" class)
Pixel Size: 5.6??m
Resolution: 0.3MP (640×480)
Frame Rate: 30fps @ 640×480
Spectral Range: 380-650nm (with IR-filter)
Connectivity: USB 2.0
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10 Mac OSX Linux

Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10 Mac OS 10.8+ Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor 2GB RAM USB2.0 port
Advanced software for Windows:
– offers Stitching EDF video recording and measurement functions
– conducts measurements for lengths angles arcs areas and etc.
– saves still images in BMP TIFF JPG PICT PTL or other formats
– live video and still image capture can be set in different resolutions simultaneously
More features: add layers watermarks mosaics tiles; adjust color balance exposure saturation contrast orientation; change resolution histogram granulation diffusion; transform images via edge detection digital image warping; conducts measurements for single parallel or perpendicular lines and rectangular elliptical and irregular areas; adds notes measurements text arrows labels and etc. using customizable text with different sizes and colors; conducts measurements in microns millimeters centimeters inches feet and etc. under any magnification powers with desired tolerances
Life-time free software upgrades

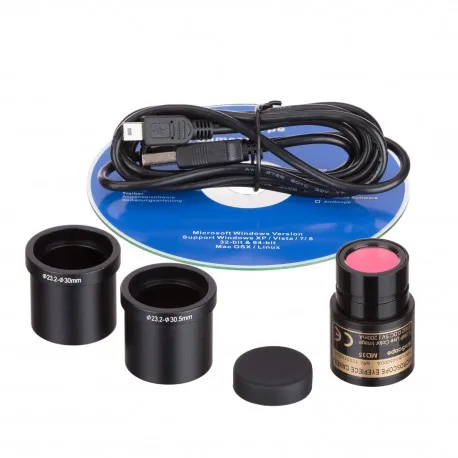

Contents:
One 0.3MP Digital Camera
One calibration slide
One USB Cable
One 23mm to 30mm Sizing Adapter
One 23mm to 30.5mm Sizing Adapter
