High Profile 4CH 1080P Wireless Waterproof IP Camera & NVR Security System Kit and Audio Optional Tuya app
Features:
lWiFi APP: Tuya
l1080P H.264+1 +, Plug&Play, 2.0MP (1920X1080)
l3.6 mm, Lens, 4pcs Array LED, IR distance 30M
lOutdoor Waterproof, Wi-Fi Connection, Smartphone Access
lGoogle Home, Alexa supported
lSupport alarm pushmotion detection and alarm output(voice/email/ FTP etc.)
lAI Human detection

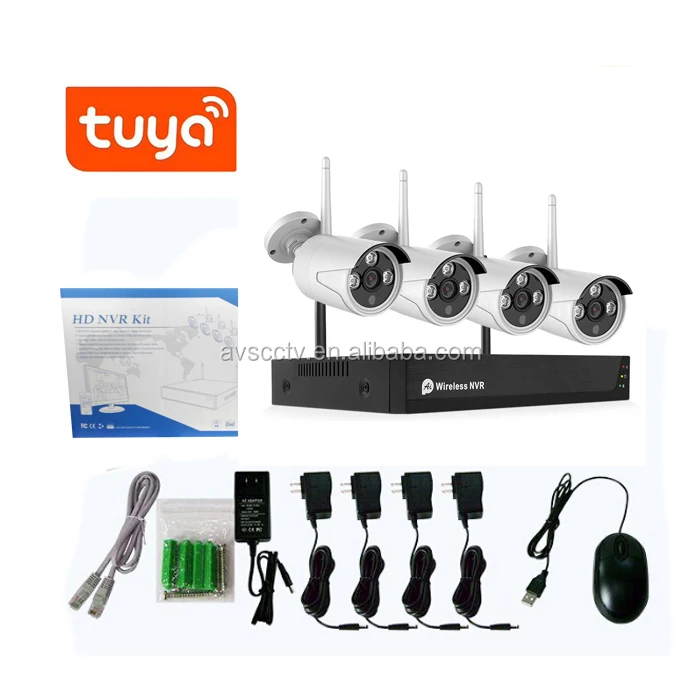

What’s in the package?
1. 4 pcs 1080P Network camera+1pcs 4ch 1080P NVR
2. 1pcs network cable +1pcs12V 2A+4pcs 12V 1Apower supply
3. English User Manual(CMS,mobile app,manual), Mouse
NVR Technology Specification:
| Wireless NVR Specification | ||
| Model | AVS-TY4CH1080IPK | |
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadband | 20Mbps | |
| Audio Bitrate | 64Kbps | |
| AV (audio/video) output | HD-MI output | 1024×768,1366×768, |
| 1440×900,1920x1080p | ||
| VGA output | 1024×768,1366×768, | |
| 1440×900,1920x1080p | ||
| AV Codec Specification | Video Resolution | 1080P Realtime |
| Synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch |
| Alarm Output | 1ch (optional) | |
| Hard Disk | Type | 1*SATA interface |
| Support Capacity | 1-6 TB | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/ PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address), etc | ||
| Others | Power Supply | DC12V2A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 256mm(W)×216mm(V)×41mm(H) | |
| Weight(excluding HDD) | About 0.75kg | |

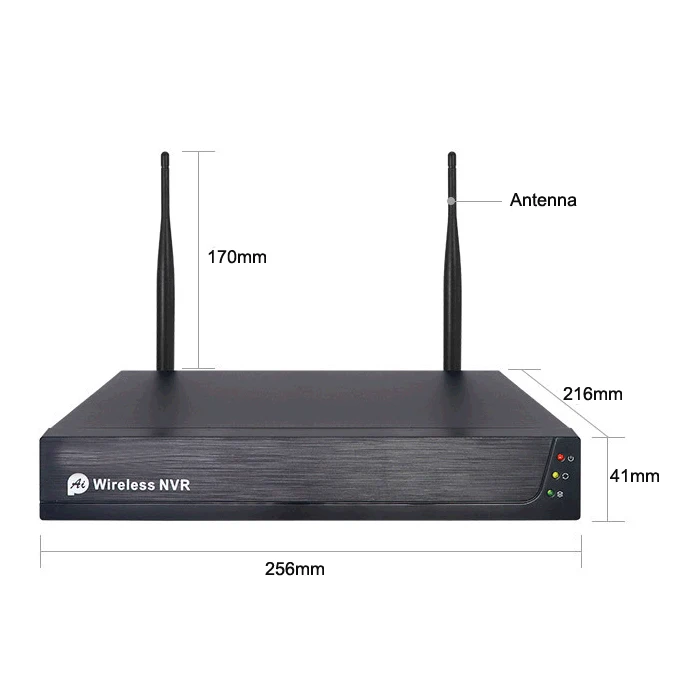

NVR Image
Wireless IPC Specification:
|
Wireless IPC Specification |
|
|
Sensor |
1/2.9†Hisilicon Sensor |
|
Signal System |
PAL/NTSC |
|
Resolution |
1920 x 1080(1080P) |
|
Minimum illumination |
Color: 0.001 Lux; B/W: 0.0001 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
3.6mm Megapixel lens |
|
White Balance |
Auto |
|
Day&Night |
Auto / Color / BW |
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
Power Input |
DC12V-1A |
|
Weight |
About 0.48KG |
|
Waterproof |
IP66 |

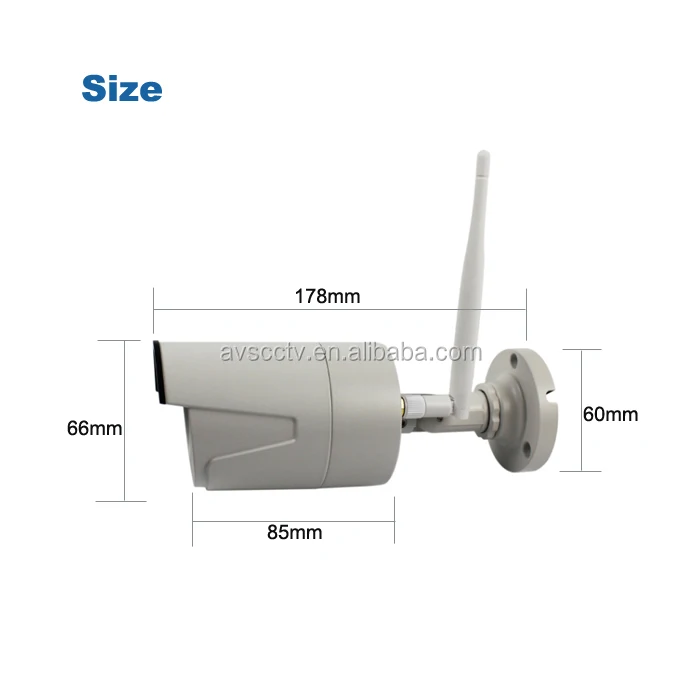

IPC Image

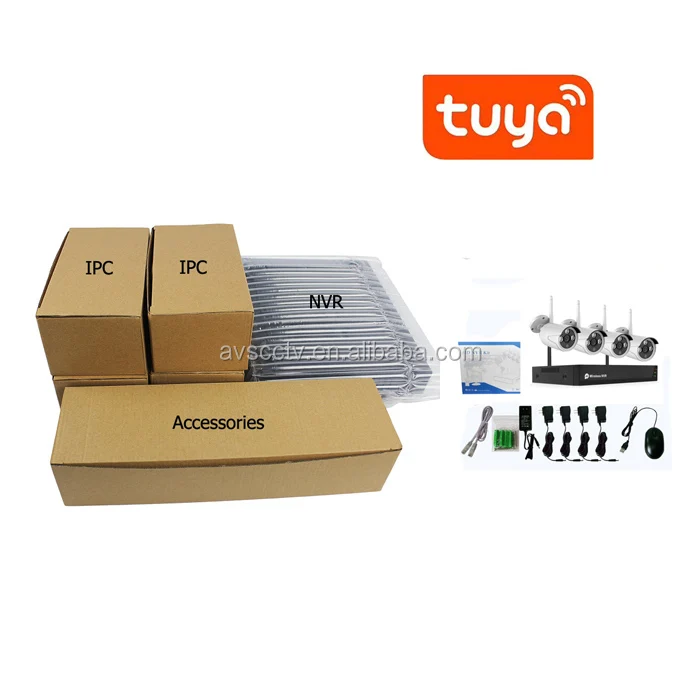

Package Image
