| Key Features |

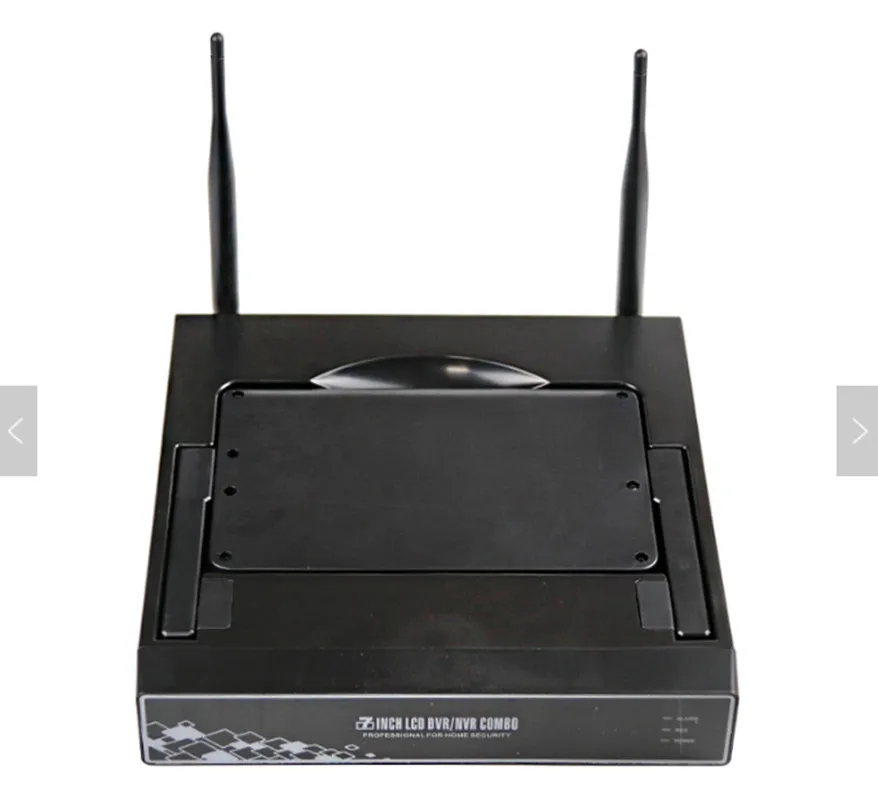

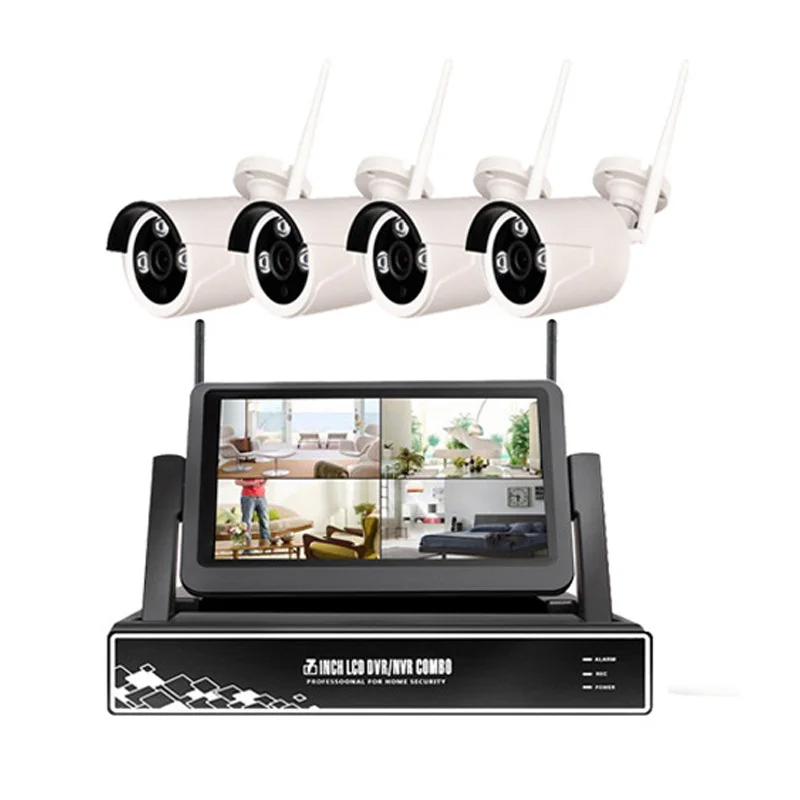

* 1080P/720PWireless Network Video Recorder

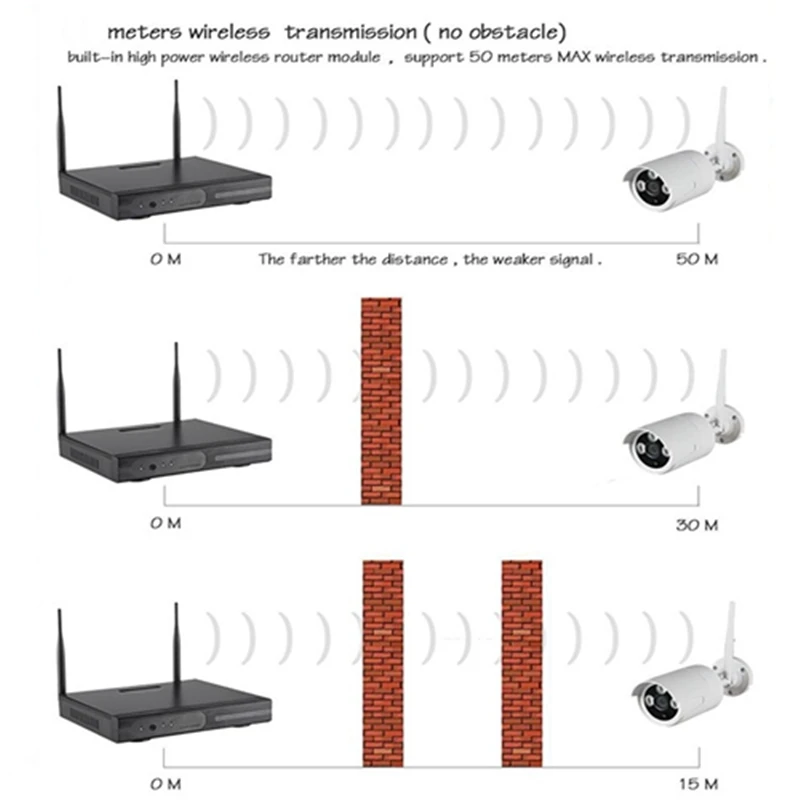

* Built-in WIFI module with high-performance and high stability
* Automatically Connection between NVR and IPC
* Support video preview/recording/playback/backup
* Support the mixed use of wireless and wire,support different scene
* Support Android/IOS/PC remote |
| Wireless NVR Specification |
| Model |
K10804W/K9504W |
| Video input |
4ch D1/960H720P/960P/1080P |
| HDMI Output |
1ch,Resolution:1024×768, 1366×768, 1440×900, 1920×1080 |
| VGA Output |
1ch,Resolution:1024×768, 1366×768, 1440×900, 1920×1080 |
| Resolution |
D1/960H/720P/960P/1080P |
| Playback |
4ch |
| Recording |
Manual,time,motion dection,alarm |
| Storage |
1 SATA |
| Storage capacity |
4TB for each HDD |
| Network interface |
4 Network Ports for K9504W, 1 Network Port for K9604W |
| USB interface |
2 USB, 1 USB |
| Audio interface |
3.5 inch headphone jack(Optional) |
| Power consumption |
≤5W |
| Power |
DC12V |
| working temperature |
-10℃—+55℃ |
| Dimension(mm) |
258mm×210mm×42mm |
| Working humidity |
10%–90%RH |

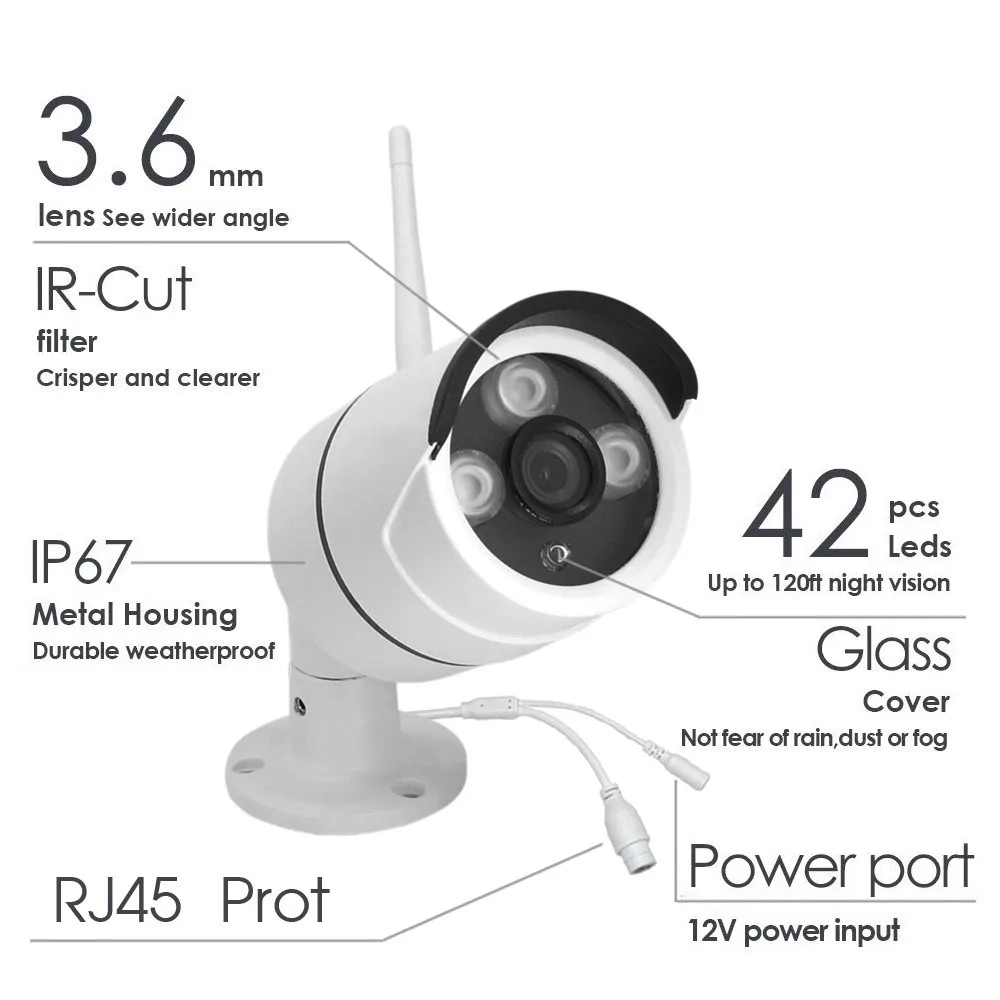

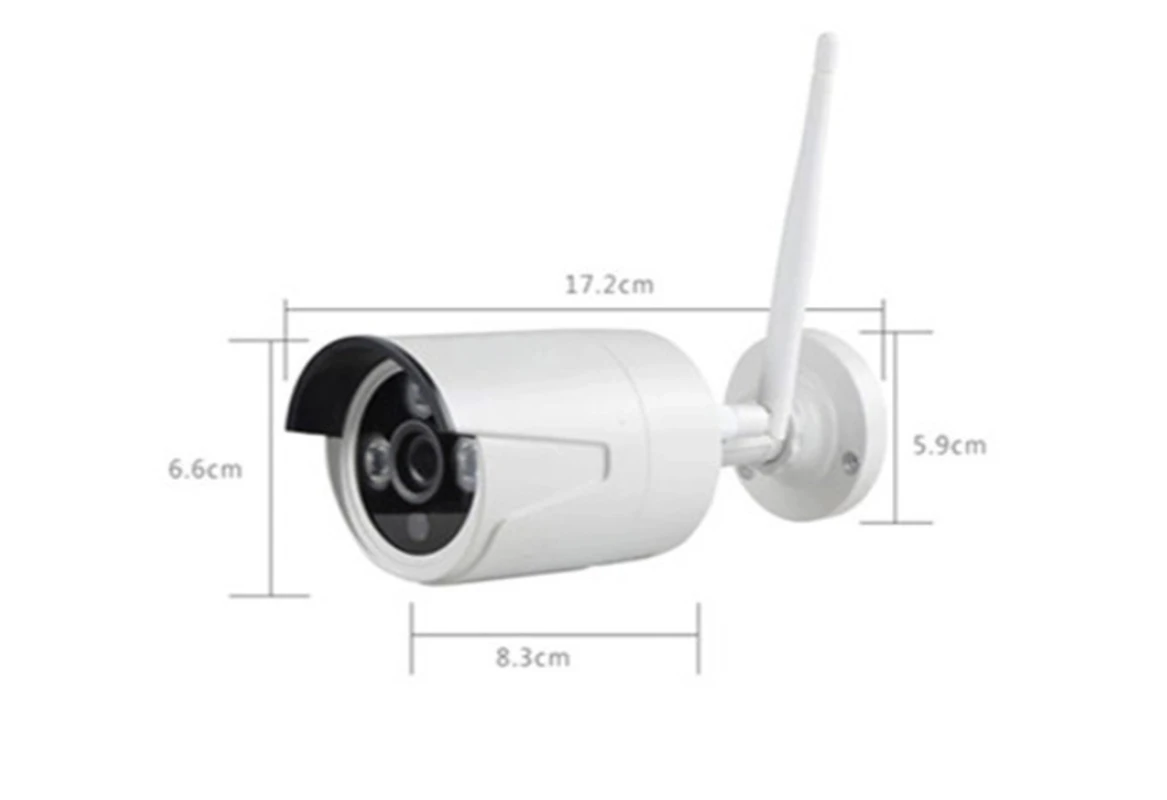

| WIFI Camera Specification |
| Technical Parameters |
Model |
PE2010E/PE2013E/PE2020E |
|
| Sensor |
1/4†Progressive Scan Sensor |
1/3†Progressive Scan Sensor |
| Signal System |
PAL/NTSC |
| Resolution |
1280 x 720 16 : 9 High Defination |
1280 x 960 4 : 3 High Defination |
| Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter |
1/25s to 1/25,000s |
| Lens |
4/6mm |
| OSD |
Date Time & Title |
| White Balance |
Auto |
| Day&Night |
Auto / Color / BW |
| 3D-DNR |
Auto |
| Mirror/Flip |
On / Off |
| Frame Specification |
Two Streaming at the Same Time:
H.264 1280×720@25fps or below
H.264 640×360@25fps or below |
Two Streaming at the Same Time:
H.264 1280×960@15fps or below
H.264 640×360@15fps or below |
| S/N |
> 39.1 Db |
| Interface |
RJ45 / WIFI 802.11b/g/n |
| General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
| Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
| Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
| Power Input |
DC12V-1A |
| Power consumption |
≤6W |
| Size |
205(L)×70(W)×55 (H)mm |
| Weight |
500g |
| Level of Protection |
IP66 |
• OEM Service: We could offer OEM and ODM services for our clients.
• Delivery Time: Sample order 1-2 working days, bulk order 7-10
working days.
• Delivery Term: By Express(DHL/FEDEX/TNT/UPS),By air,By Sea.
• Quality Warranty: One year warranty.
• We provide 4BS service: best quality, best price, best delivery, best service.
•Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
