Technical Parameters:
|
Power
|
AC220V±10%,50Hz 110V±10%,60Hz
|
|
Motor speed
|
1350rpm 1620rpm
|
|
Operating Temperature
|
-40°C~+55°C
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Remote control operating distance
|
Max 50m (Frequency418mHz)
|
|
Rated output power of motor
|
350W
|
|
Remote control mode
|
Single button
|
|
Max gate weight
|
1800Kg
|
|
Output torque
|
35Nm
|
|
Limit switch
|
Spring limit switch
|
|
Noise
|
≤58dB
|
|
Duty cycle
|
S2, 15 minutes
|
|
Extra remote control
|
20 pcs
|
|
Gate move speed
|
11m/min,13.2m/min,
|
|
Application
|
Home automation
|
1. Max gate weight 1800kg
2. New design of spring limit switch downward

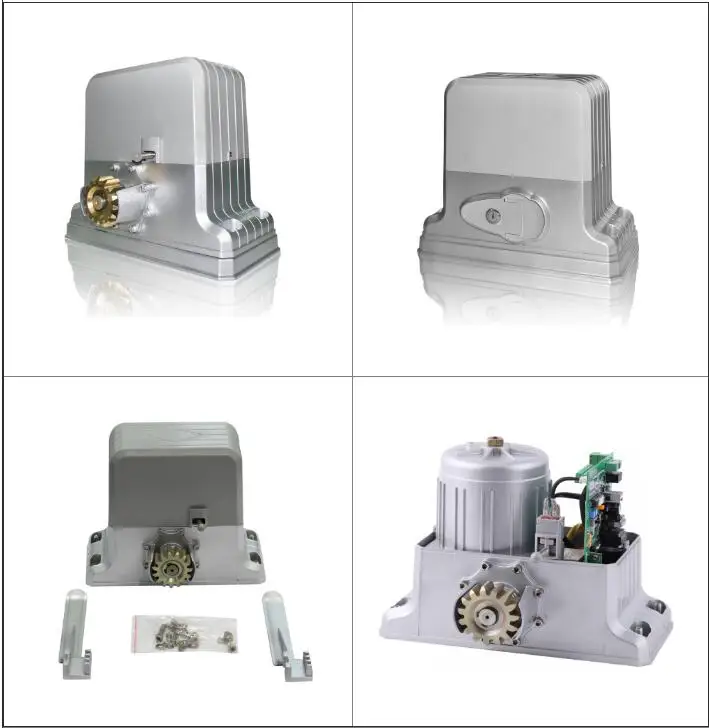

3. Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4. Mcu is supplied to control the gate operator
5. Keypad/single button interface
6. Photo beam safety beam interface
7. User can select Auto-close function
8. Manual key release design for emergency purposes
