Technical Parameters:
|
Power Supply
|
AC220V/110V±10V 50/60HZ
|
|
Current
|
2.7A( AC220V) , 5.8A(AC110V)
|
|
Operating Temperature
|
-40°C~+50°C
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Motor voltage
|
AC 220V/110V
|
|
Rated output power of motor
|
20μ F (AC20V motor ), 60μ F+14μ F(AC110V motor)
|
|
Power
|
350W
|
|
Max gate weight
|
1800Kg
|
|
Absorbed power
|
594W (AC220V) ,638W(AC110V)
|
|
Limit switch
|
Spring limit switch
|
|
Motor speed
|
1350rpm (AC220V motor ) , 1620rpm(AC110V motor)
|
|
Gear speed
|
58.8rpm (AC220V motor ）, 70.2rpm (AC110V motor)
|
|
Travel speed
|
11m/min (AC220V motor) , 13.2m/min (AC 110V motor )
|
|
Overload protection temperature
|
130°C
|
|
Application
|
Home automation
|
1. Max gate weight 1800kg
2. New design of spring limit switch downward

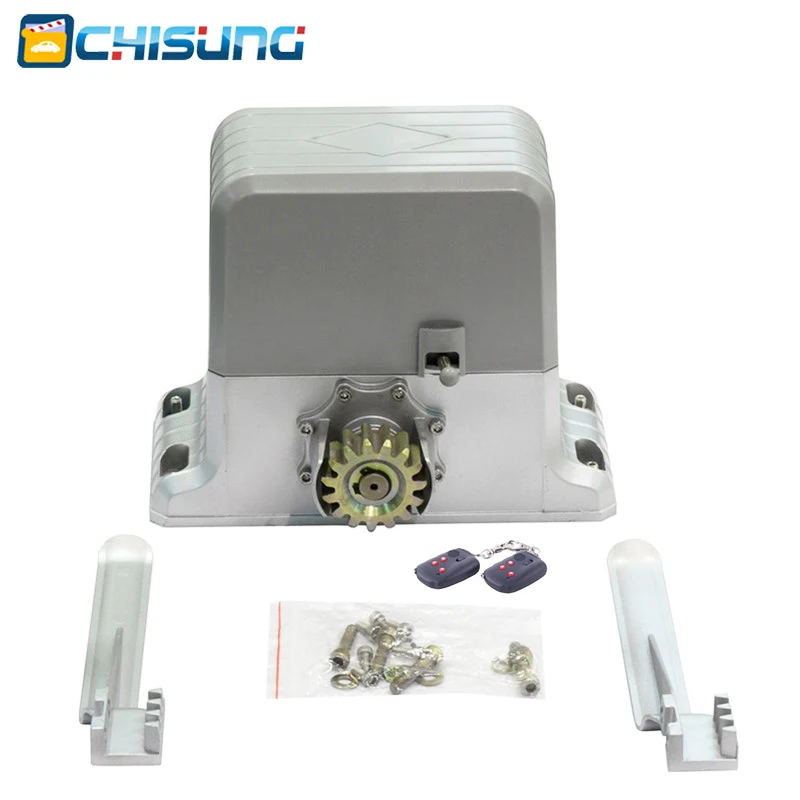

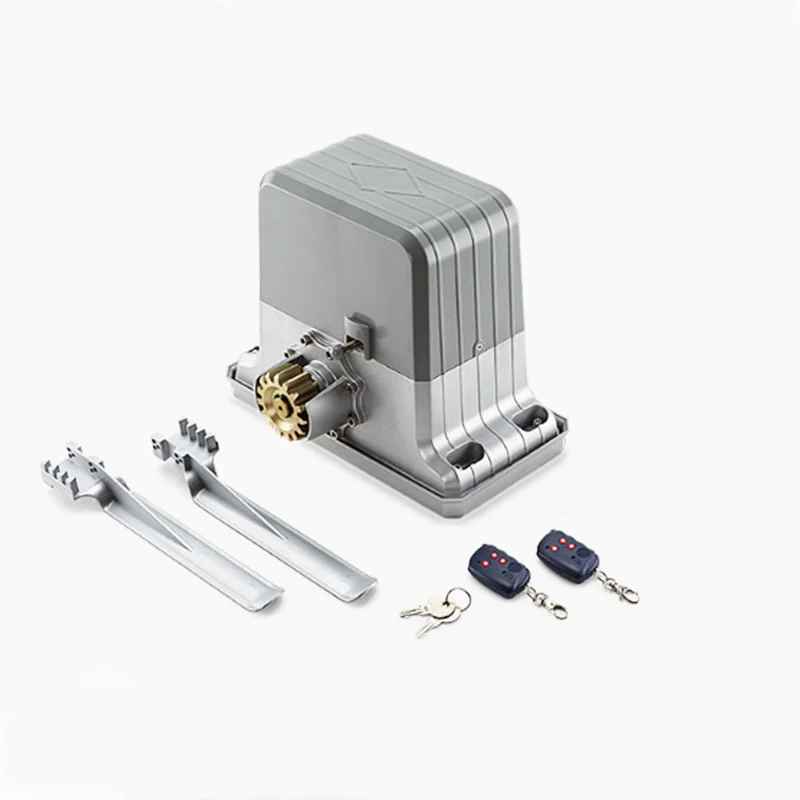

3. Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4. Mcu is supplied to control the gate operator
5. Keypad/single button interface
6. Photo beam safety beam interface
7. User can select Auto-close function

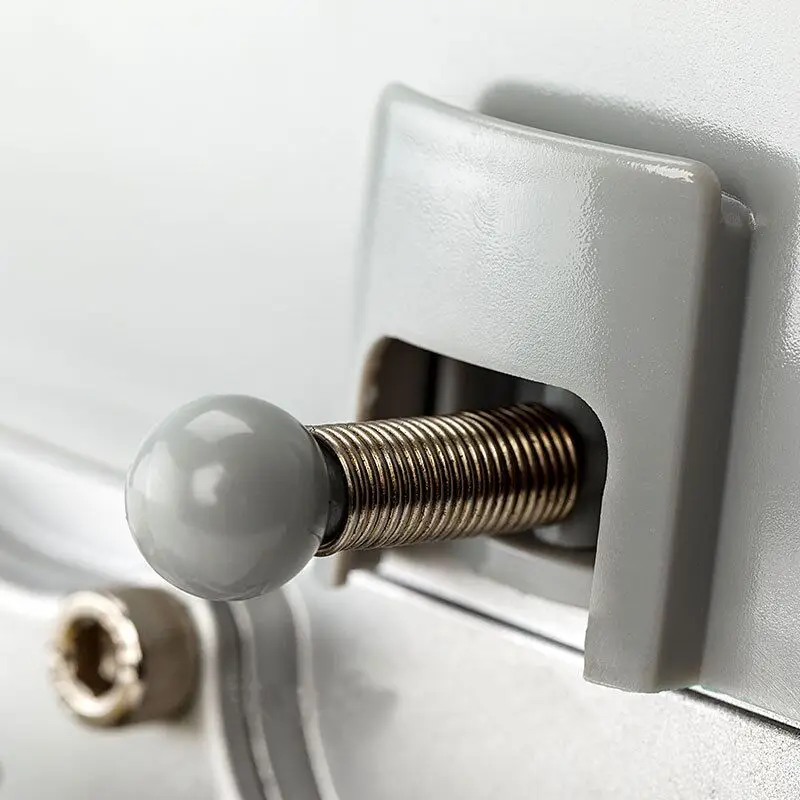

8. Manual key release design for emergency purposes
