Technical Specifications
|

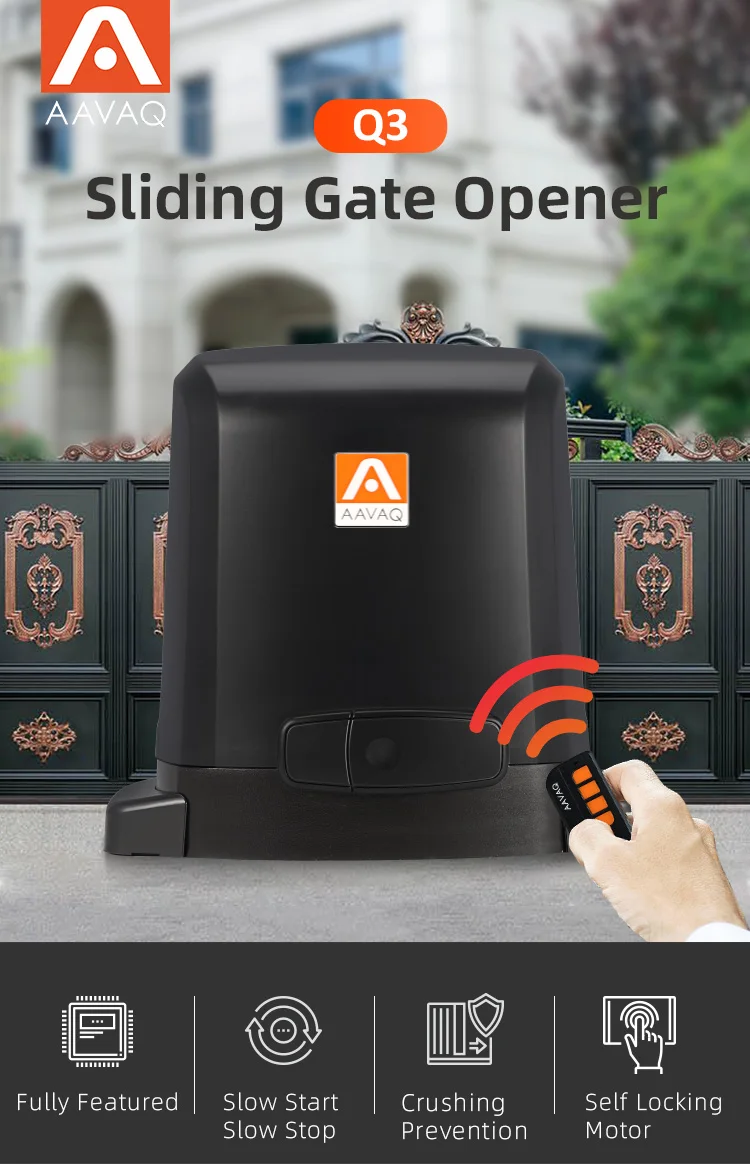

Q3
|
|
Maximum Gate Weight
|
300kg
|
|
Maximum Gate Width
|
6m
|
|
Maximum Pulling Force ( When Started )
|
25kgf
|
|
Maximum Pulling Force ( When Running )
|
15kgf
|
|
Maximum Speed
|
200mm/s
|
|
Duty Cycle
|
40%
|
|
Rated Current / Maximum Current
|
3A / 10A
|
|
Nominal Input Voltage
|
220V AC ± 10%, 50 / 60Hz
|
|
Motor
|
24V DC
|
|
Transformer
|
100W
|
|
Degree of Protection
|
IP54
|
|
Slow Start / Slow Stop Function
|
Yes
|
|
Safety Obstruction Sensing
|
Yes
|
|
Connect to APPLink Smartphone Controller
|
Available
|
|
Operating Temperature
|
-20°C to +50°C
|
|
Limit Switch Type
|
Mechanical limit switches with electronic running way adaption
|
|
Radio
|
KEELOQ Hopping Code, 433MHz
|
|
TX Capacity
|
Standard 2, Max. 25 Transmitter ( Remotes )
|
|
Maximum Distance
|
80m
|
|
Weight
|
11.5kg
|
