Chinese Factory Waterproof Two Way Trunk Line CATV Amplifier

Contact for price Product Policy

For video content, product variations, and additional details, visit the product page:

See Details

Find this product elsewhere:

(✨) Show Description | (⭐️) Reviews

About this item

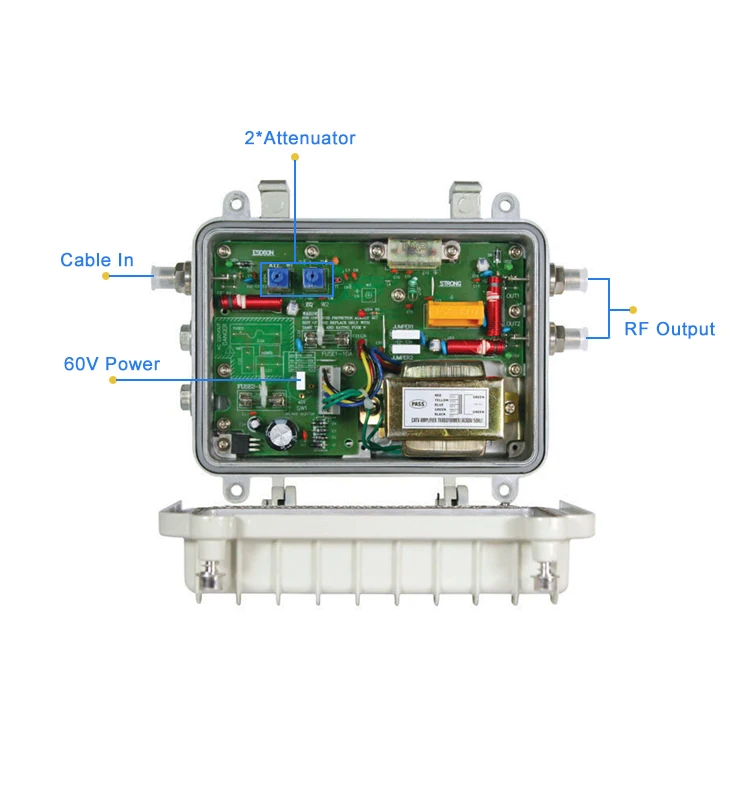

Outdoor 2 Output Power Catv Line Rf Amplifier

VA-860S1 use for CATV system cable transmitting network, compensate cable transmitting for RF-signal loss, extend the transmitting of RF-signal or improve users distribution network. Amplifier use professional module amplify design, signal level adjustment, take convenience for network return and system adjustment. With embranchment output and two way distribution output, ensure widely practicability.

(1) Frequency range: 45~550/750/862MHz.
(2) EQ range: 0~-20dB adjust continuely.
(3) Gain range: 0-~20dB ajust continuely.
(4) Output mode1 way coupler or 2 splitter.
(5) Power supply: AC60V or AC220V.
(6) Over-current protection and lightning-proof.

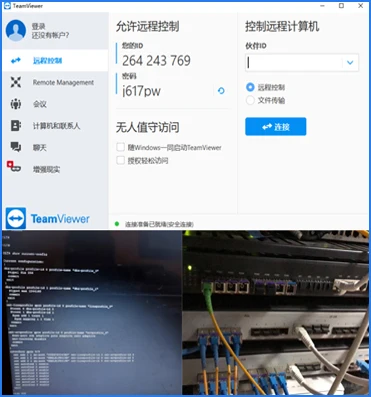

Technical Support

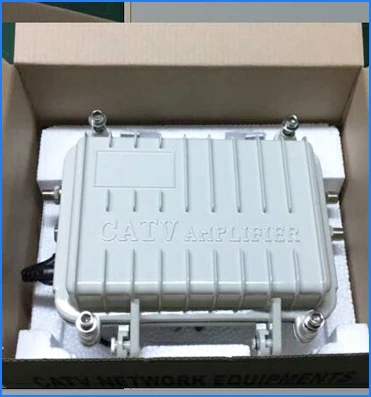

Packaging

Item	Parameter			Item	Parameter
	VA-860S1	VA-860S2		VA-860S1	VA-860S2
Freguency range	45~550/750 / 860MHz			EQ Adjustment	0~20dB adjustable
Flatness in band	â‰¤Â± 0.75dB			IN/Out Impedance	75
Return loss	â‰¥ 16@87~550MHz â‰¥ 14@550~862MHz			Output Level	â‰¥110dBuv	â‰¥118dBuv
Nominal working gain	32dB	40dB	Signal	1%	1.2%
C/CSO	60dB	60dB	Power Supply	60V or 220V/AC
C/CTB	61dB	61dB	Current	6A/AC 60V/AC
Noise figure	9dB	9dB	RF Connector Type	F- connector
ATT Adjustment	0~20dB adjustable			Power Consumption	12W (Max)

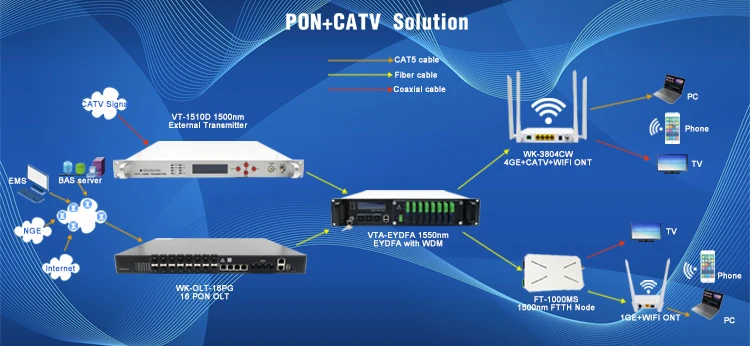

Shenzhen Wolck Network Product Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.

Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
