Product Description

Highlight

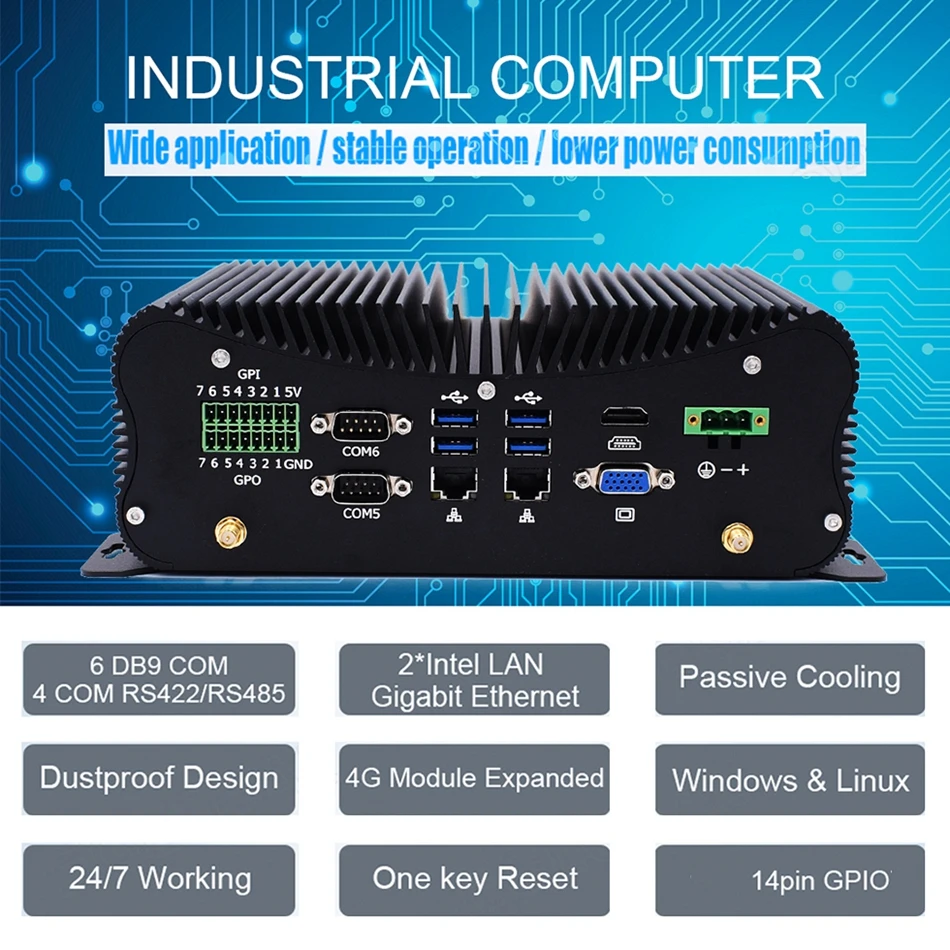

â™¦ Full aluminum black/silver color shell, Exquisite production craft on ouside design

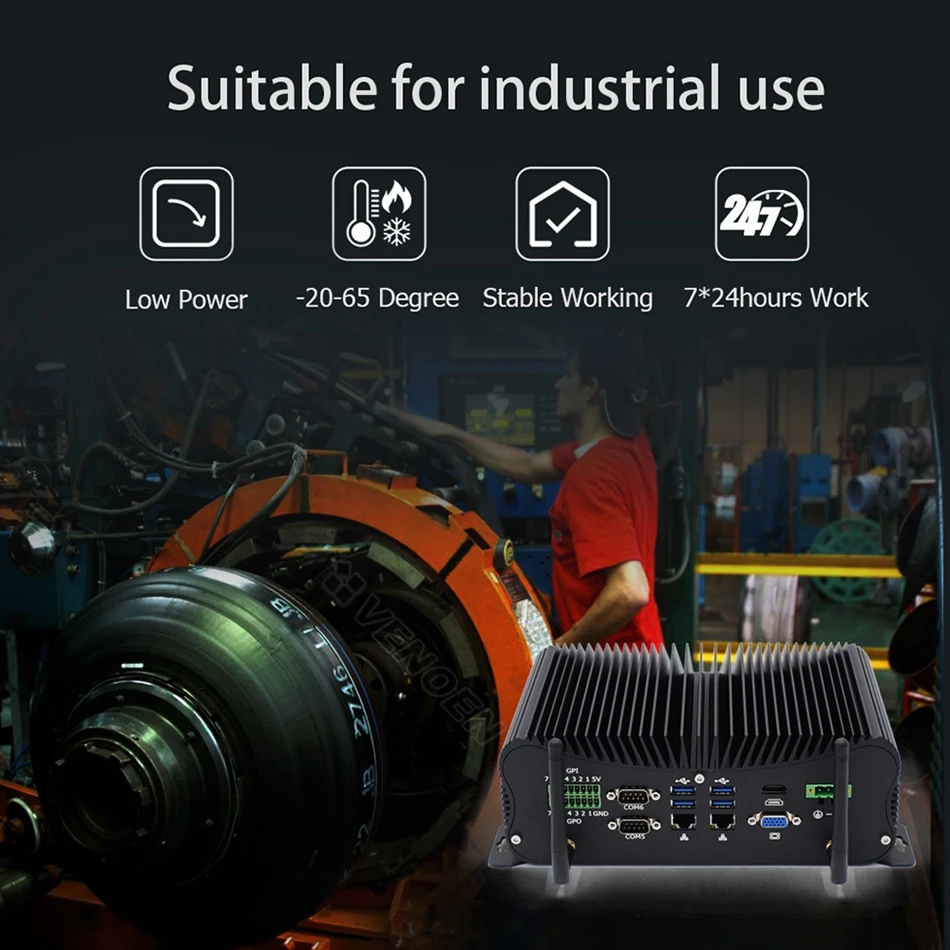

â™¦ Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
â™¦ Support Watchdog, Auto power on, RTC, PXE boot, State lamp interface, trigger switch(wafer 1*2), CMOS clear button
â™¦ fit for 9-36V 3pin Phoenix terminal power input,ATX/AX quick siwtch
â™¦ Can be mounted on the wall
â™¦ 2*intel i201/i211 Gigabit RJ45 LANS,6*DB9 COM(4*rs232/422/485ï¼Œ8*USB(2*USB inside), PS/2,GPIO and LTP

G8-10210U
CPU: Intel Comet Lake Core i5-10210U 1.6GHz Max 4.2GHz Quad Core Eight Threads 6MB cache TDP 15W IntelÂ® HD Graphics(300mhz-1.15GHz)
G8-10510U
CPU: Intel Comet Lake Core i7-10510U 1.8GHz Max 4.9GHz Quad Core Eight Threads 8MB cache TDP 15W IntelÂ® HD Graphics(300mhz-1.15GHz)

G8-7267U
CPU: Intel KABYLAKE 14nm CPU Intel Core i5-7267U 3.1GHz Max 3.5GHz Dual Core four Threads 4MB cache TDP 28W IntelÂ® Iris Plus Graphics 650

G8-4200U
CPU:Intel Core i5-4200U 1.6GHz Max 2.6GHz Dual Core Four Threads 3MB cache TDP 15W IntelÂ® HD Graphics 4400,TDP 15W
G8-5287U
CPU:Intel Broadwell 14nm Core i5-5287U 2.9GHz Max 3.3GHz Dual Core Four Threads 3MB cache TDP 15W IntelÂ® Iris Graphics 6100,TDP 28W

Specification

Basic Information:
CPU	Onboard Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk)
TDP	Refer to CPU
BIOS	American Megatrends Inc.
Chipset	Refer to CPU
Memory	2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB
OS	Windows 7/Windows 8/Windows 10/Linux, WES7/10

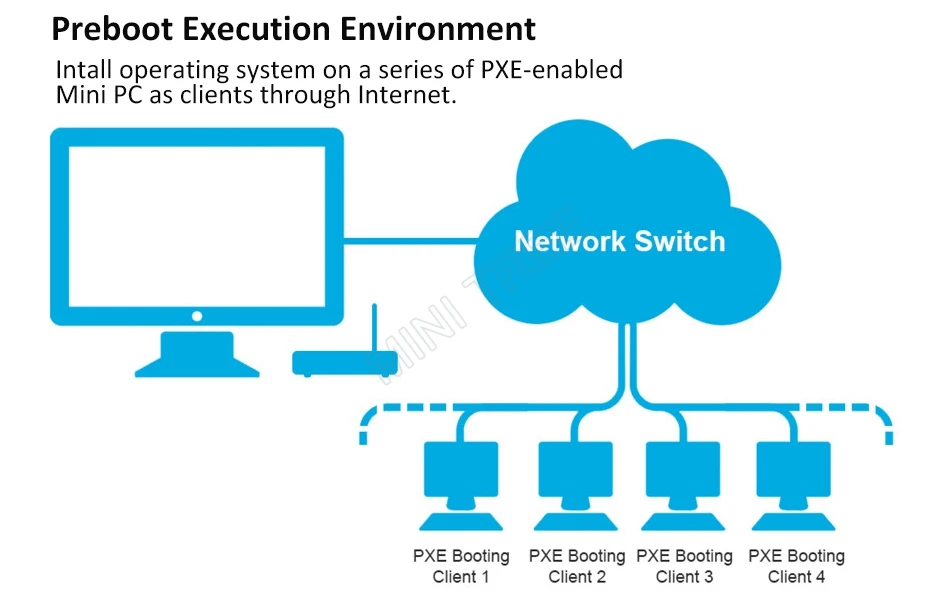

PXE	YES
Audio	Intel High Definition Audio Controller
Network	Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video	Refer to CPU

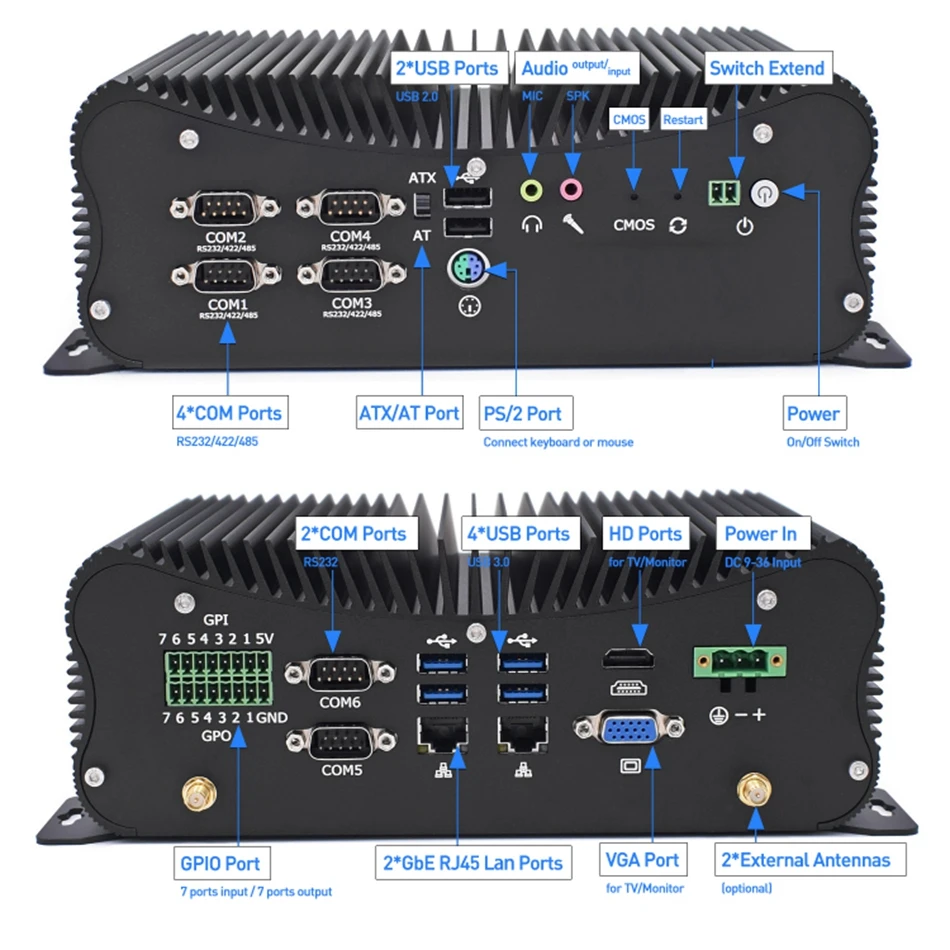

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 3pin phoenix terminal power supply input, support 9~36V
Button	1 x DIP Switch, support ATX/AT boot mode
USB	4 x USB3.0, 2 x USB2.0
PS/2	1 x PS/2(keyboard and mouse 2 in 1)
Display	1 x VGA, 1 x HDMI
LAN	2 x Intel GbE RJ45 LAN

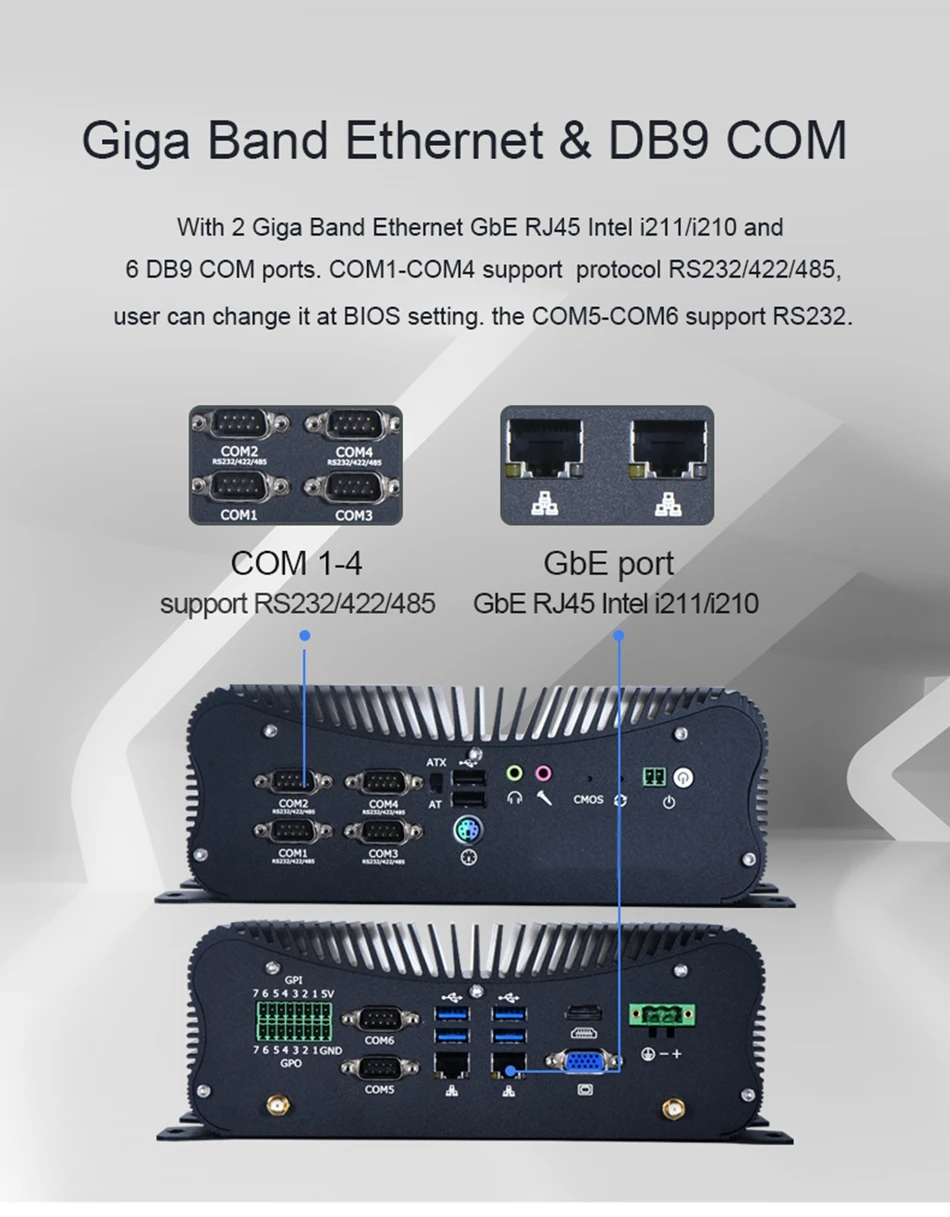

COM	6 x DB9 COM(4xCOM support RS422/RS485)
GPIO	1 x GPIO( 7pin input, 7pin output)
LPT	1 x LPT
Audio	1 x MIC, 1 x SPK
SIM	1 x embedded SIM card slot onboard
Others	1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input

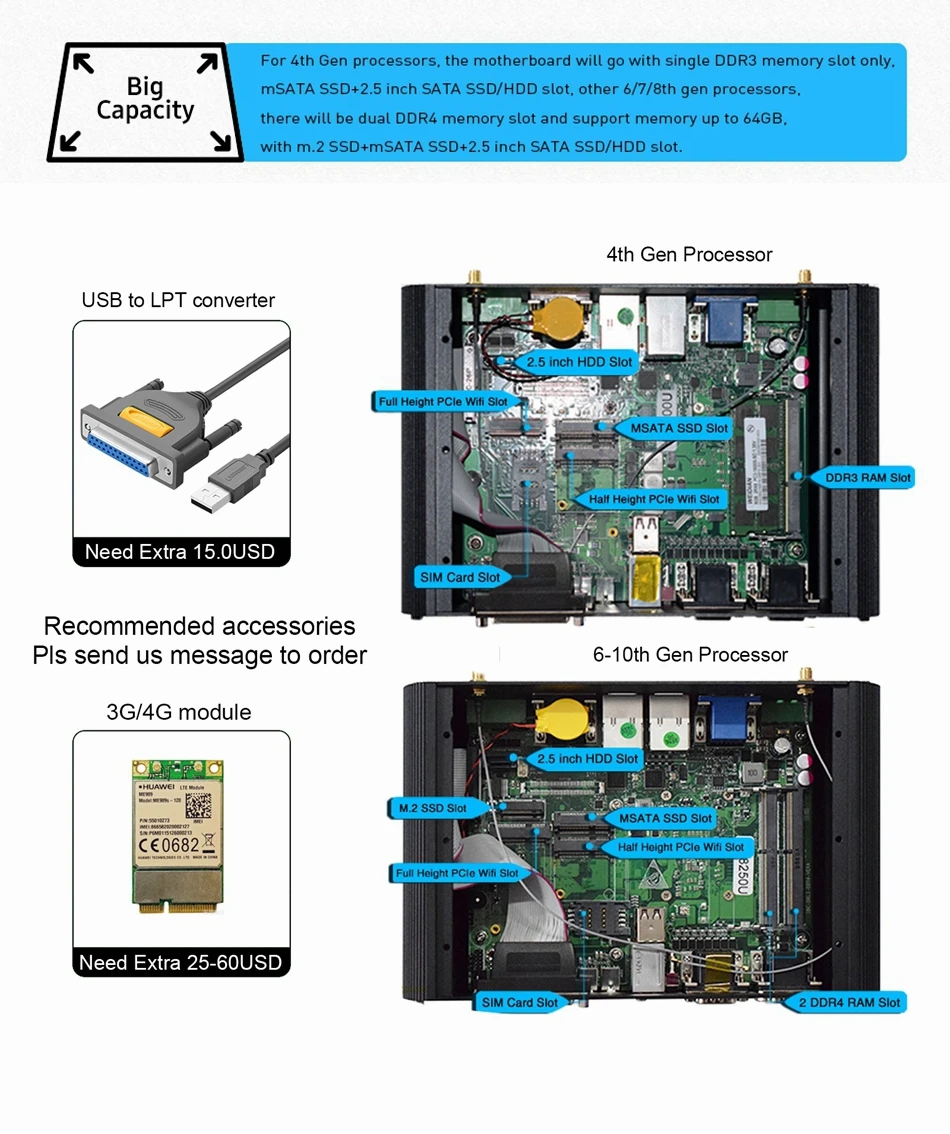

Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi/BT module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/BT module 1 x Extended IO, support LPC, USB, PCIE
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +9V~+36V, recommend 12V/5A
Operating Temperature	-20/+60Centigrade
Storage Temperature	-30/+70 Centigrade
Storage Humidity	10%~90%@30 Centigrade (non-condensing)
Product Dimension & Details
Size	24915086mm
Weight	NW 2.2KG, GW 3.5KG
Shell	Black color aluminum alloy(any customized color for bulk order)
Mounting	4 mounting holes on case
Cooling Mode	Fanless
Functions	Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)

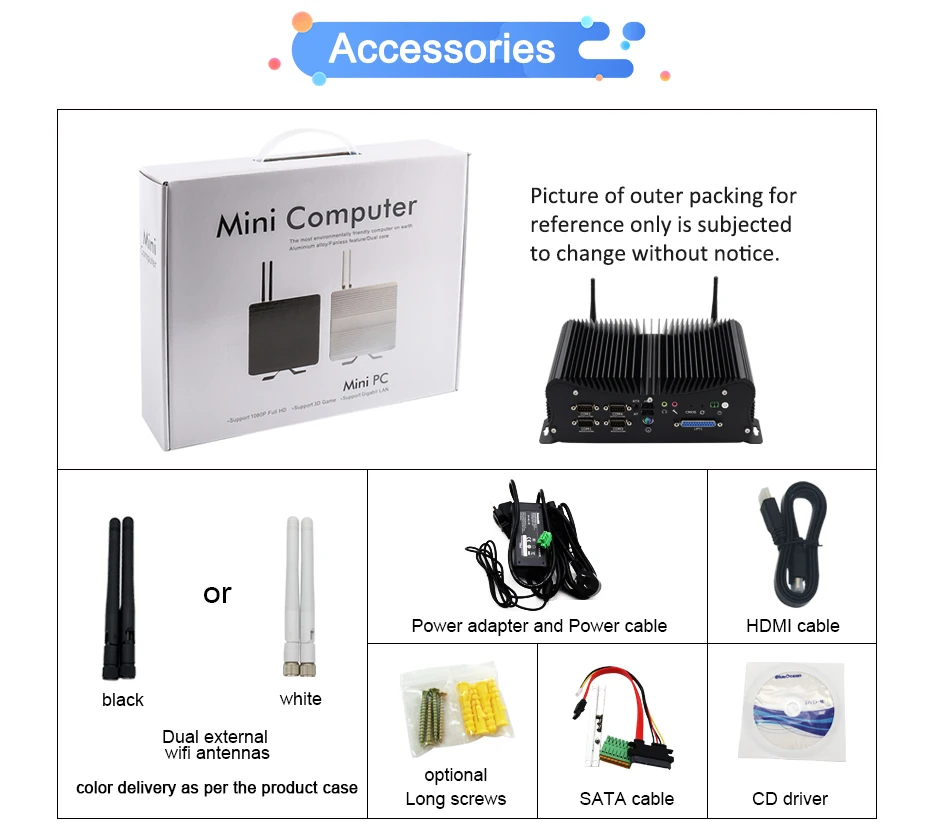

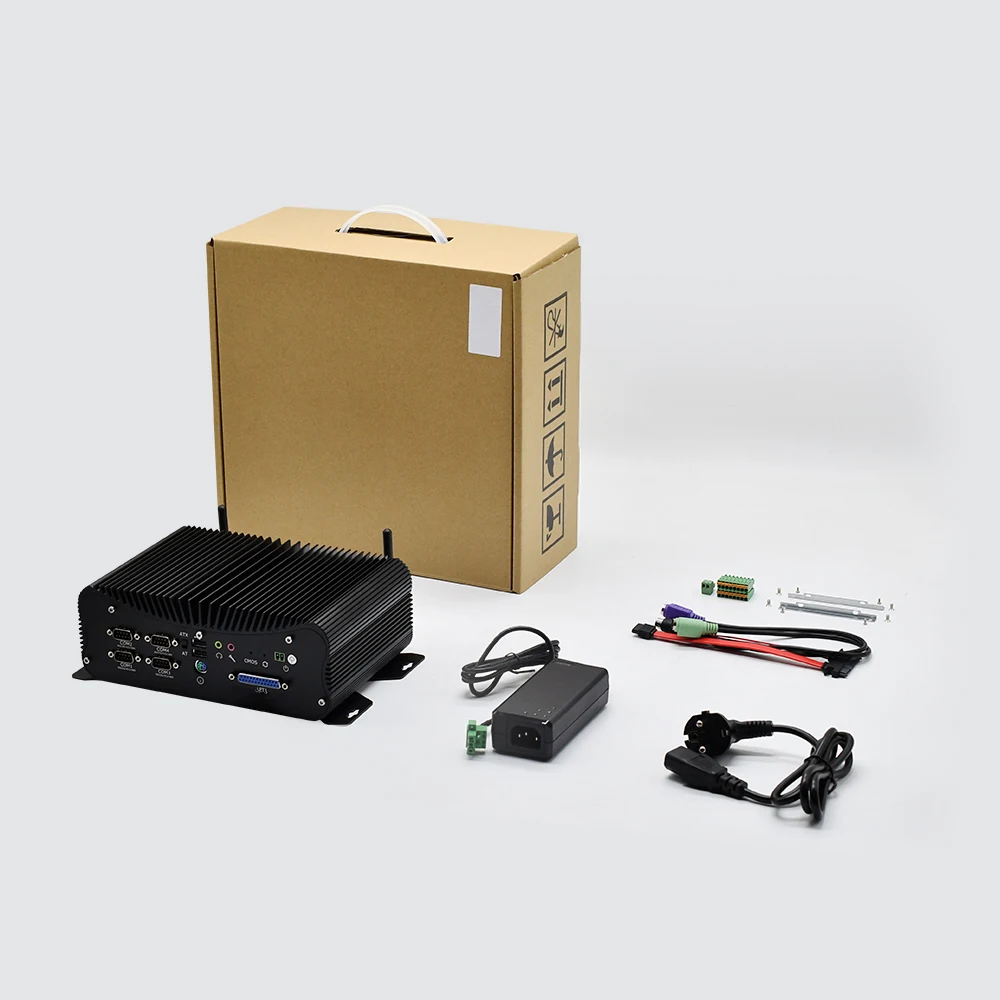

Package Content

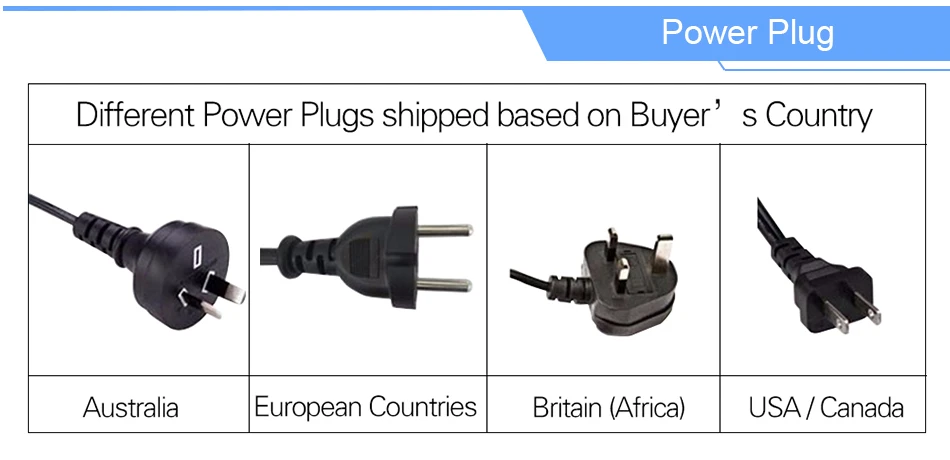

Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
