About this item

Ficep 2 lan server box quad core N3350/N3450 RS232 port /com port support win10 linux industrial mini pc

Product Description

Ficep 2 lan server box quad core N3350/N3450 RS232 port /com port support win10 linux industrial mini pc_0425.png

product information

Processor	CPU	Apollo lake series processor
	CPU Package	BGA
	Chipset	Apollo lake single chip
	BIOS	EFI BIOS
Memory	Technology framework	Single channel DDR3 1066/1333/1600/1866MHz
Memory	RAM Socket	DDR3 SODIMM 204 Socket
Video	Graphic controller	Intel HD Graphics
	Dual LVDS and EDP	LVDS Support dual channel 24bit LVDS,Resolution maximum:19201200, EDP Resolution maximum: 38402160(LVDS&EDP Display alternatively)
	VGA	VGA support Resolution maximum:2048×1536
	HDMI	Support Resolution maximum:3840*2160
	Double display support	VGA+HDMI VGA+LVDS LVDS+HDMI Synchronous or asynchronous display
	Three Display support	LVDS+VGA+HDMI Synchronous or asynchronous display

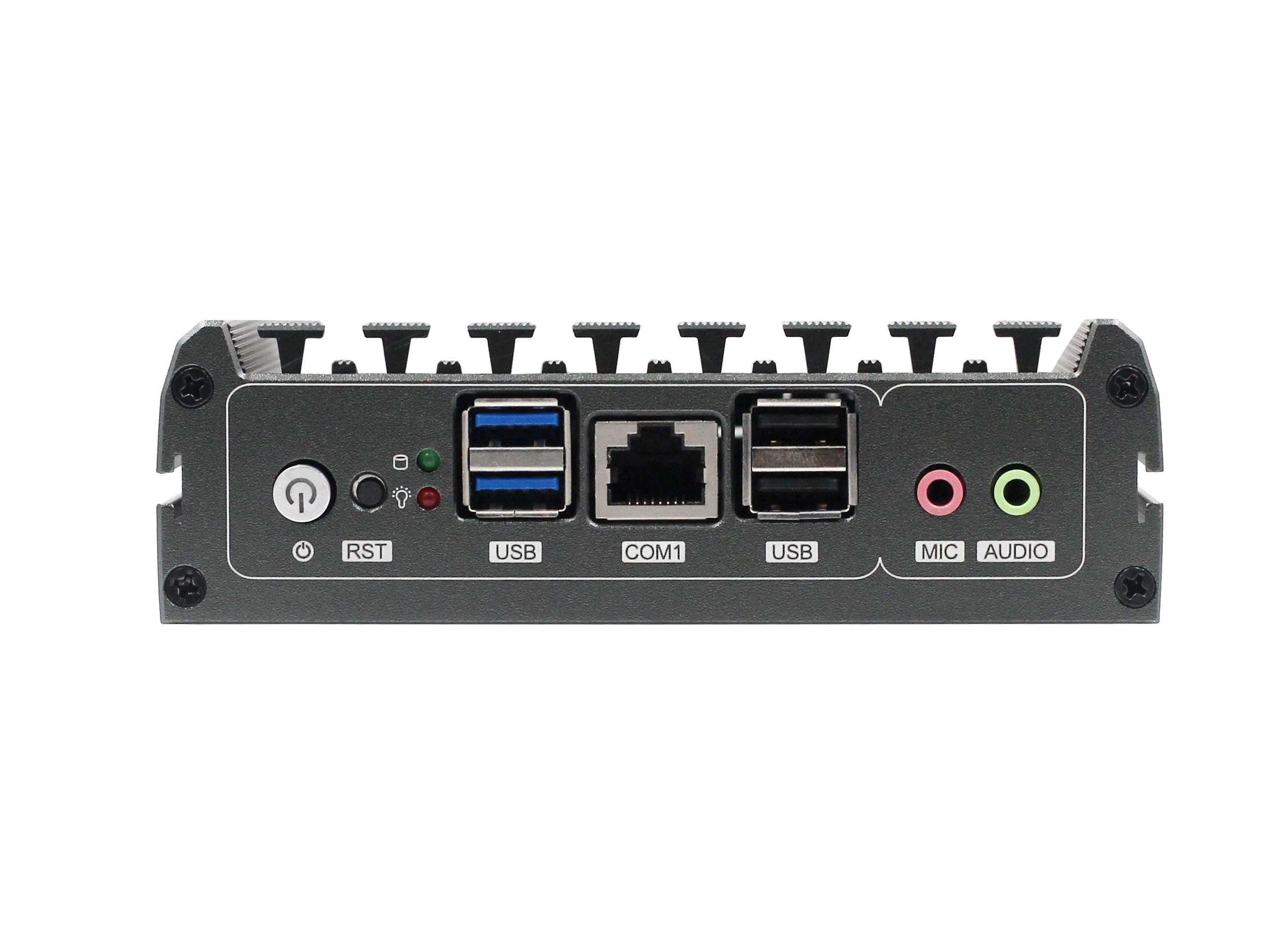

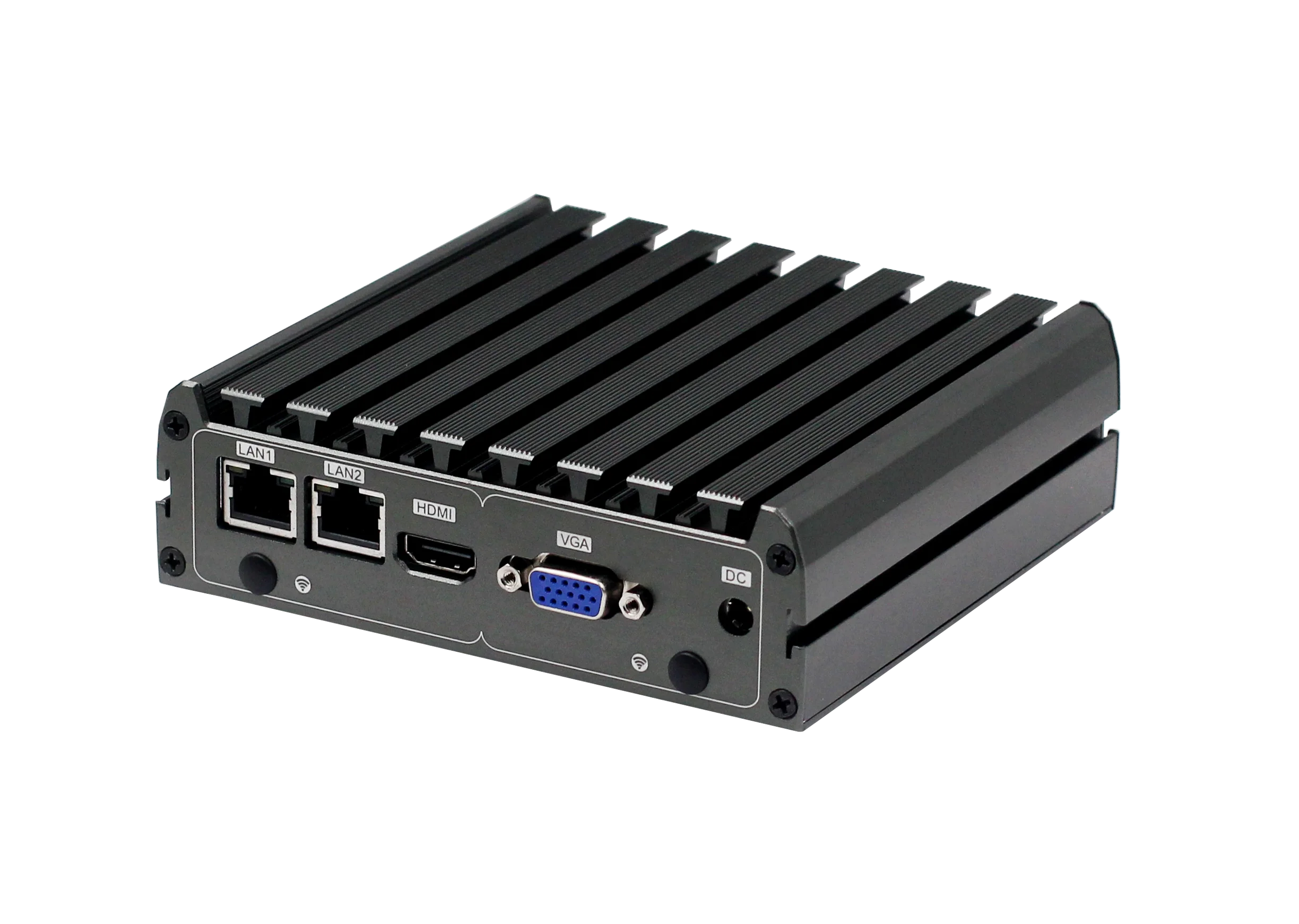

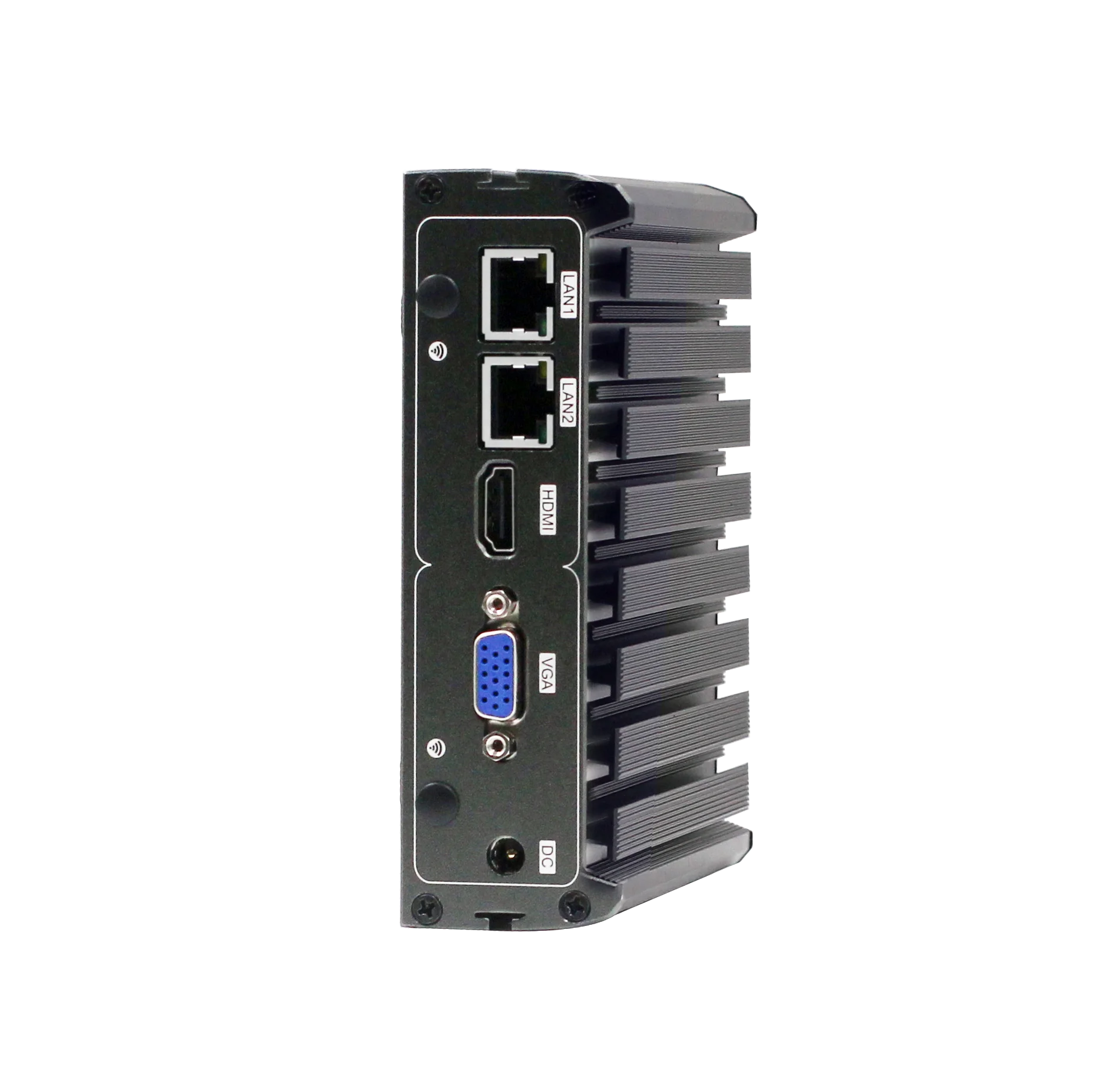

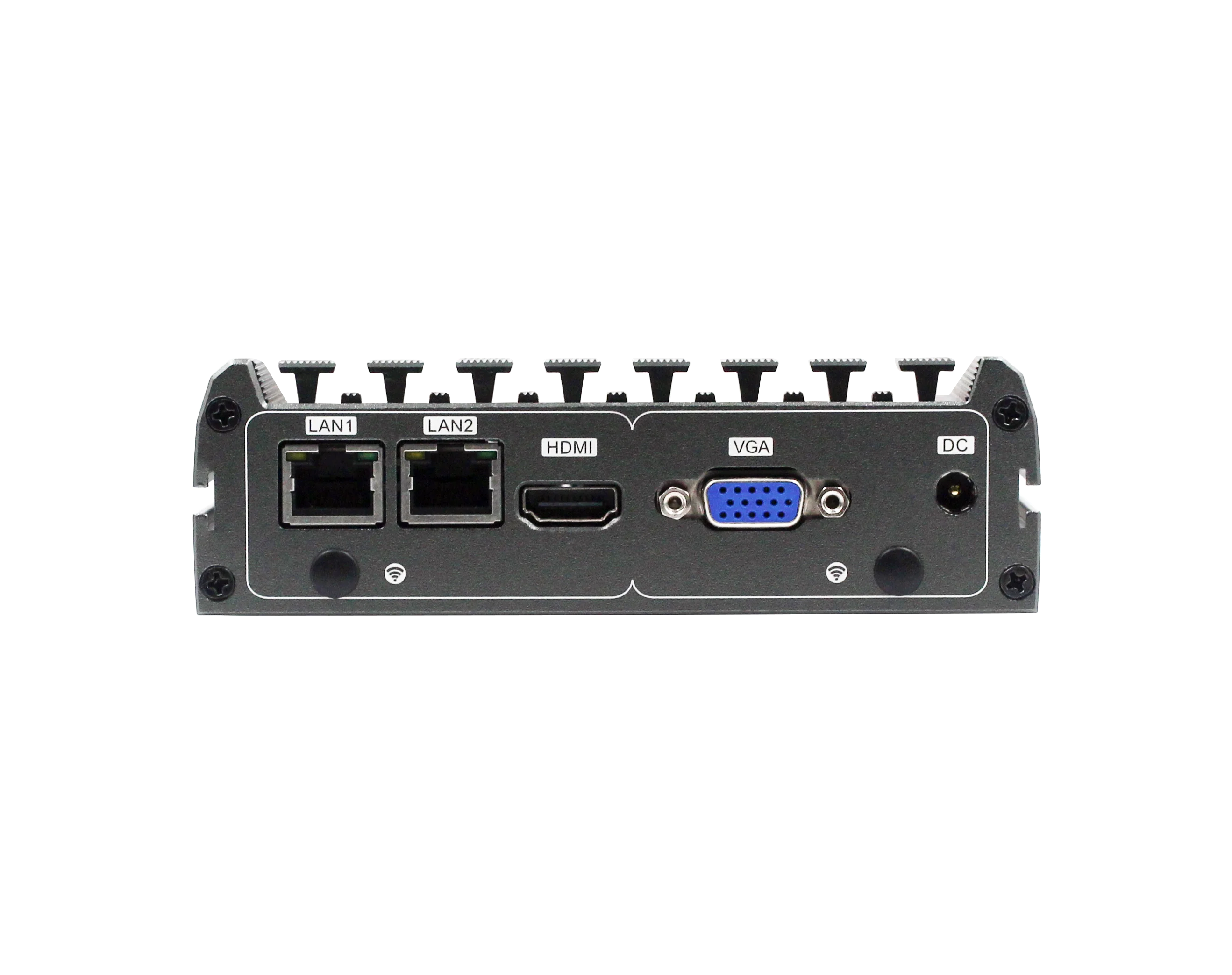

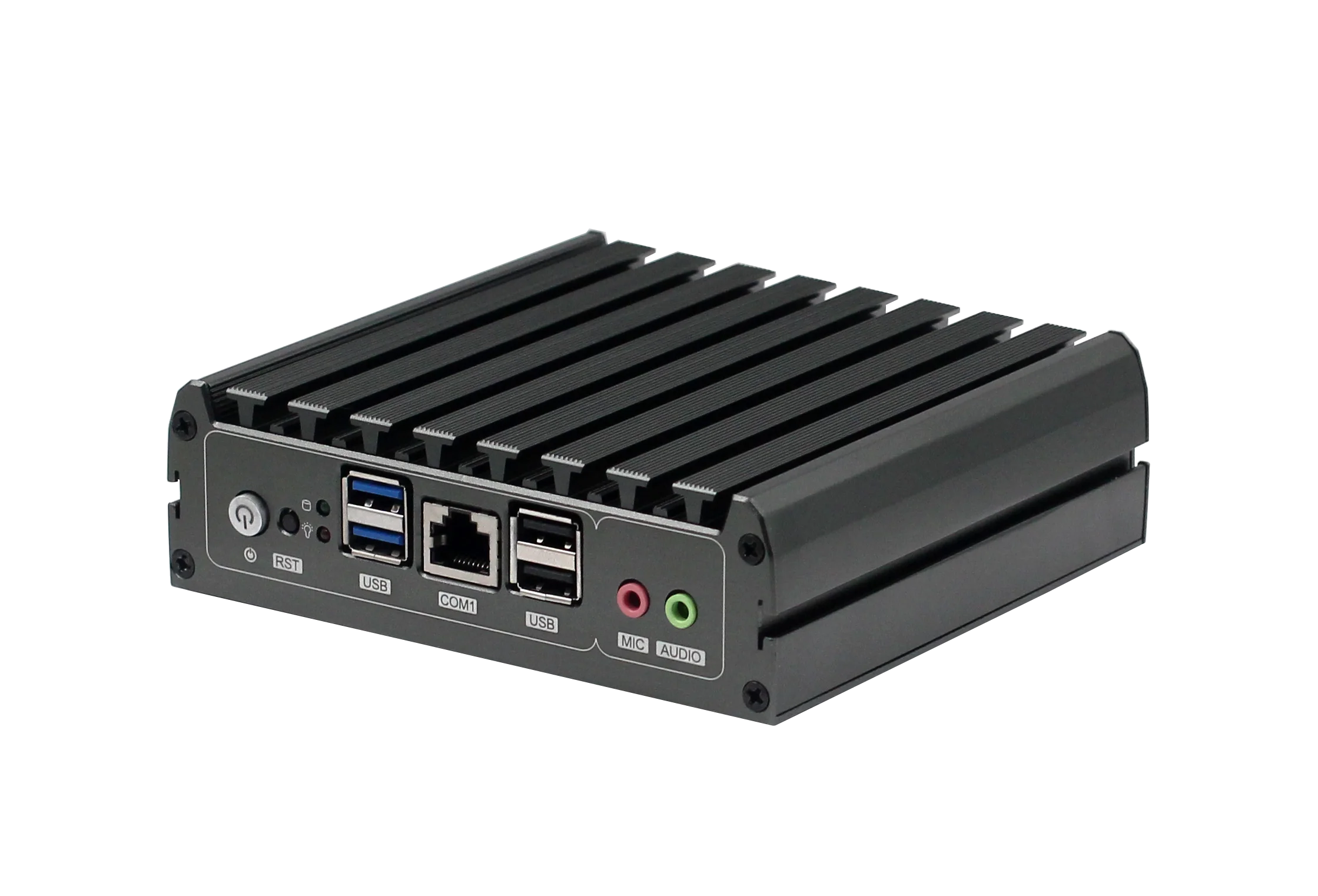

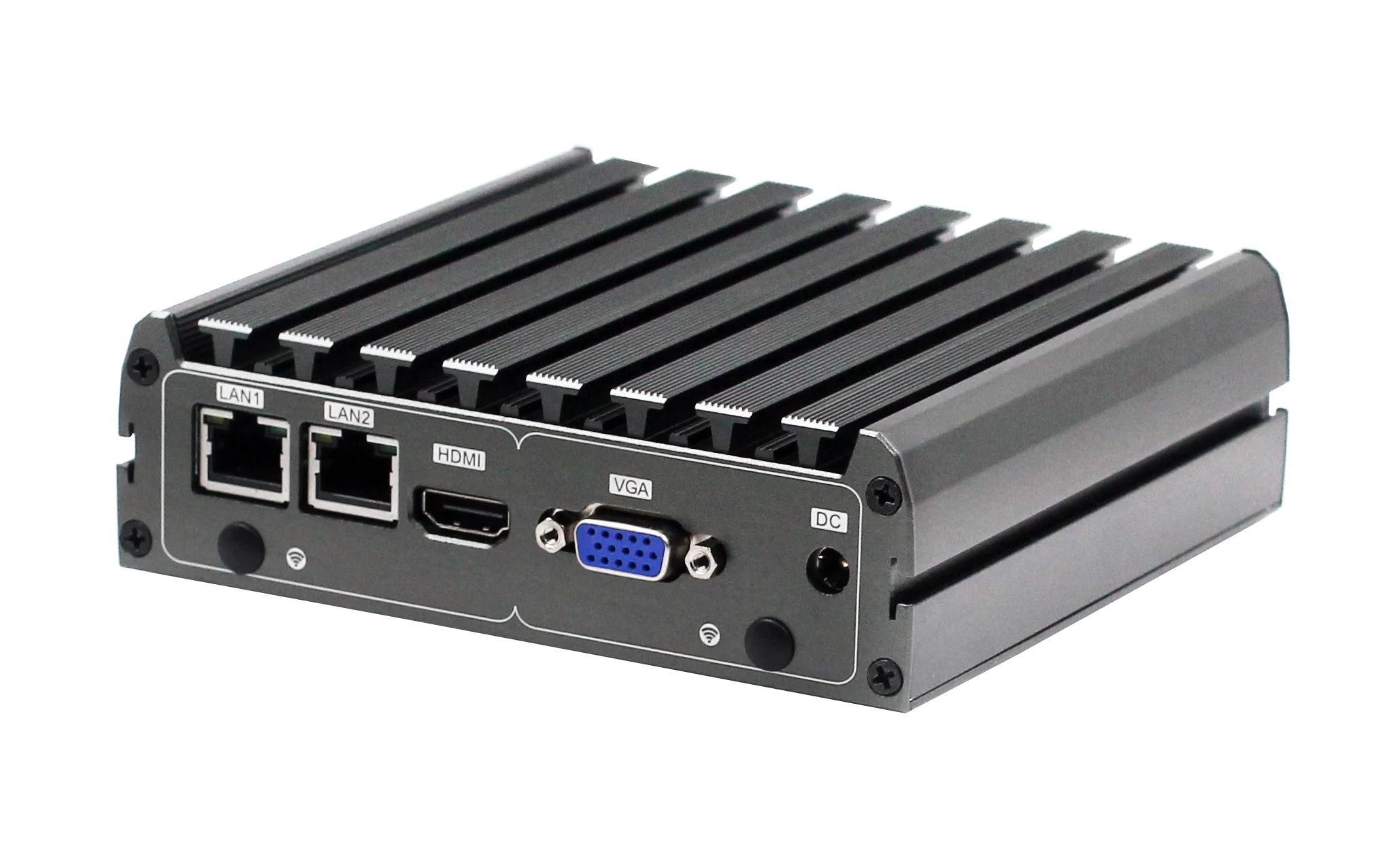

I/O panel	Ports	1DC 1VGA 1HM 2LAN 1LINE OUT 1MIC IN 2USB2.0 2USB3.0 1COM Port(RJ45 interface) 1Power indicator and hard disk indicator 1Reset button 1Fast switch button with indicator
Internet	CONTROLLER	2*Intel I225 Ethernet LAN,RJ45 ports
Audio	CONTROLLER	Raychem HD ALC662 audio decoding (left and right channel + microphone)
Super I/O	CONTROLLER	ITE8613
HARDWARE MONITORING	Watchdog timer	0-255sec, sample code optional
HARDWARE MONITORING	Cooler	Aluminum fan heater (fanless available)
Input/Output Interface	USB	2USB2.0,2USB3.0max support +5V/1A
	Com port	1*RS-232(RJ45 interface)
	GPIO	8-bit, providing routines, freely defined input/output, 3.3V@24mA level
EXPANSION BUS	Mini-PCle	1 Mini-PCIe slot, only supports PCIE protocol modules
STORAGE	SATA	1 standard SATAIII interface, maximum transfer rate 6Gb/s
	M-SATA	1 M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s
	EMMC	32/64/128G(optional)
POWER SUPPLY	Power Type	Single input DC power supply, DC12-19V, +/- 5%
WORKING ENVIRONMENT	Working temperature	-20â„ƒ ~ +60â„ƒ
	Storage temperature	-40â„ƒ ~ +85â„ƒ
	Working humidity	0% ~ 90%
	Storage humidity	0% ~ 90%
Supported System		Win10 Linux(E3940 CPU can support Android)
MEASURE	Size	120 x 120 mm
MEASURE	Weight	0.5KG
CERTIFICATION		CE,ROHS,FCC

OEM&ODM

How to select expected items in the various & complex market?

How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free

Miraco= Assured Quality + 5 Steps Strict QC + 48 Hours Aging Time + Ship in 24 Hours + Superior 99.8% Customer Satisfaction + 2 year Warranty + Easy Return Policy

OEM:

1.Logo printing on housing

2.Customize package

3.Software Customization: Booting image,UI,APP,Function and so on.

ODM:

1.PCBA design

2.Housing design

3.Software Customization: Booting image,UI,APP,Function and so on.
